What Makes a Powered 10 Inch Line Array Speaker Ideal for Outdoor Events?

By Lesound – A China line array speaker manufacturer you can trust.

“How do I get loud, clean sound outdoors without a van full of heavy gear?”
That’s the question we hear every week from mobile DJs and rental guys.

So we built the HDL210 – a powered 10‑inch line array speaker that actually delivers. No truckload required.

If you’ve ever run sound for a backyard party, a corporate stage, or a traveling band, you know the struggle: you need big sound, but you don’t want to spend an hour setting up a full PA. You want something that’s powerful, easy to move, and won’t die on you after two gigs.

That’s exactly why the HDL210 exists. It’s been our bestseller for mobile DJs, rental houses, and small production companies.

But let me answer the questions real users ask me every week – before you decide if this is right for you.



---

1. “Is 700W RMS enough for an outdoor crowd of 200 people?”

Short answer: yes. Long answer: the HDL210 packs a 700W RMS Class-D digital amplifier (1400W peak). Pair that with a max SPL of 131dB at 1 meter, and you’re comfortably covering 200–300 people outdoors. Two units per side? Even better.

I’ve personally used a single HDL210 for a backyard wedding (150 guests) – no subs, just the speaker on a tripod. The bass from the dual 10‑inch woofers (2.5” voice coil, 60 OZ ferrite magnet) surprised everyone.



2. “What’s the DSP for? Do I really need it?”

Yes. Because venues change. One day you’re in a concrete warehouse (lots of echo), next day a grassy field (no reflections). The HDL210 has a programmable built-in DSP with 4 selectable modes.

You turn a knob – that’s it.

• Mode 1: Standard (for general PA)
• Mode 2: Bass boost (when you don’t have a subwoofer)
• Mode 3: Vocal clarity (for speeches or live bands)
• Mode 4: Outdoor (extends low end slightly, cuts harsh reflections)

No laptop. No app. Just a physical knob for DSP and another for volume. Musicians and event crews love this because it’s fast and foolproof.



3. “How does it handle rain or dust? The cabinet looks plastic.”

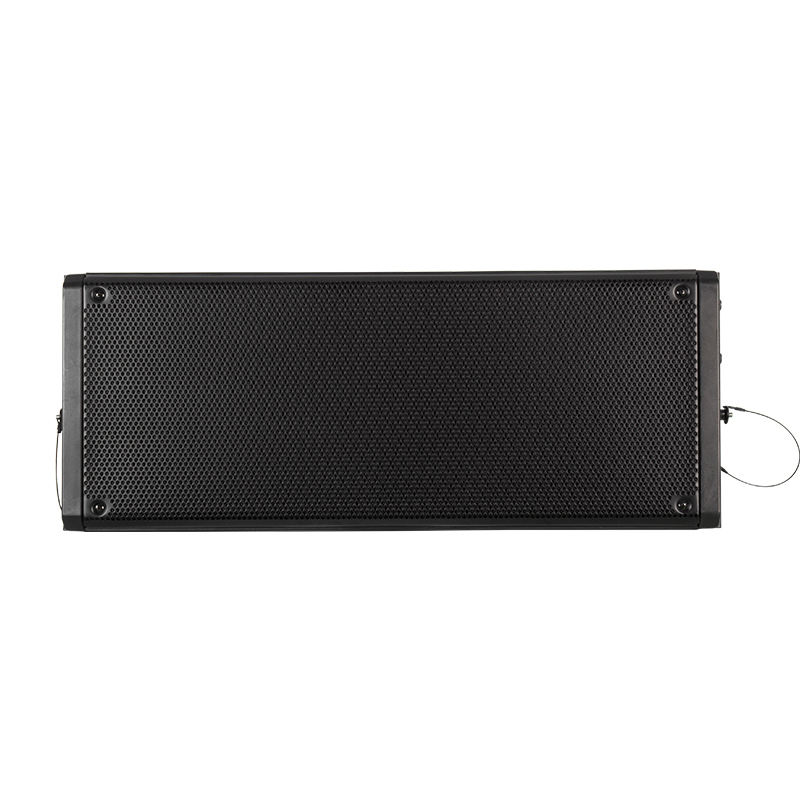

It’s PP cabinet – polypropylene. Not cheap plastic. PP is used for professional loudspeakers because it’s lightweight but absorbs shock better than wood. It won’t rot or swell when it gets damp. The metal grille adds protection for the drivers.

We’ve had customers use HDL210 on beach stages (salty air, light mist) and desert parties (dusty). No issues. But of course, don’t leave it in a downpour – it’s not IP-rated.



4. “Can I carry it alone? I work solo gigs.”

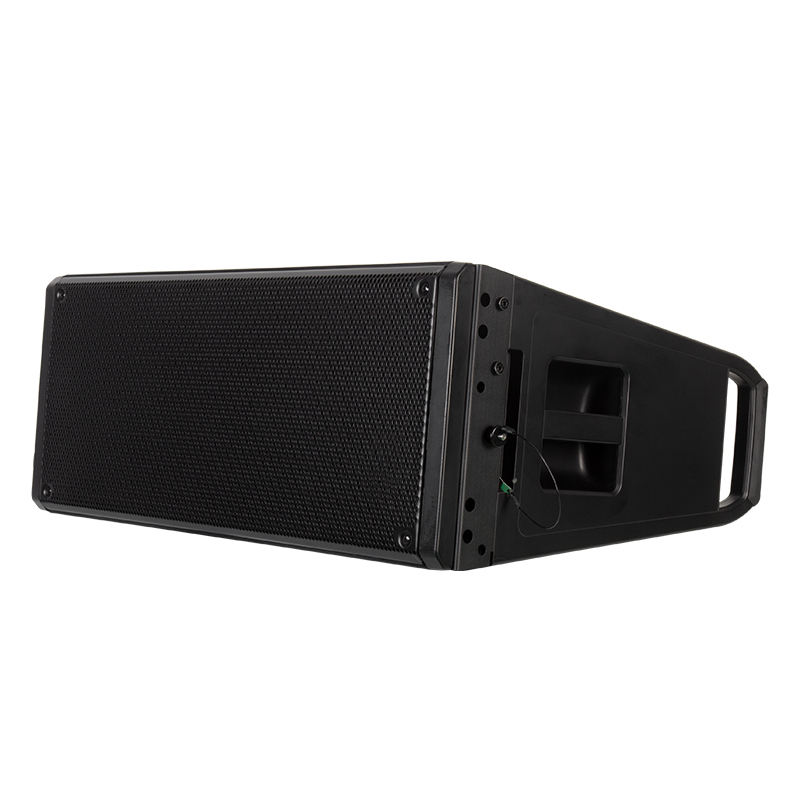

Absolutely. Two side ergonomic handles. The speaker is balanced so one person can lift it onto a stand or stack it. Weight? We don’t publish a number, but it’s noticeably lighter than a wooden 15” two‑way speaker.

Also, the PP cabinet means no splinters, no chipping paint. Touring guys appreciate that.



5. “What about custom logos or colors? I sell on Amazon or need my brand on it.”

This is what we do every day at Lesound. We’re not a factory that just ships boxes – we’re a custom two way line array speaker partner. You want your logo on it? Different color? We’ve done it.

You can order the HDL210 with:

• Your logo printed on the side grille or rear panel
• Custom cabinet color (minimum quantity applies)
• Custom packaging for retail or Amazon
• OEM modifications like different DSP presets or connector changes

So if you’re searching for an OEM 10 inch line array speaker or a line array speaker with custom logo, we’re the right partner.



---

What the HDL210 Gives You (At a Glance)

---

6. “Can I use this as a floor monitor or only flown?”

The HDL210 is designed as a line array element – meaning you typically fly it (hang) in arrays of 2‑4 per side. But many customers use a single unit on a speaker stand for small gigs. It also works as a high‑powered stage monitor if you lay it on its side (though we don’t officially recommend it due to the 15° vertical dispersion).

For most mobile DJs, one HDL210 per side on a tripod stand is perfect. Add a subwoofer later if you need deeper bass.

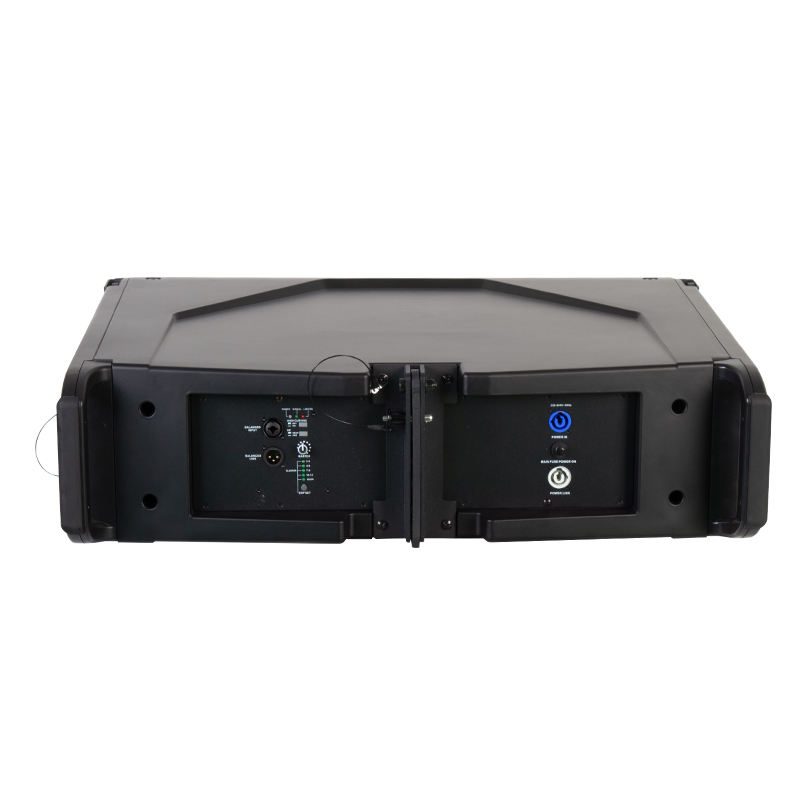

7. “What about connectivity? I use wireless mics and digital mixers.”

The input is a combo jack – takes both XLR (mic/line) and 1/4” TRS. Output is male XLR for daisy‑chaining to another powered speaker. No Bluetooth, no RCA – this is a pro speaker, not a home stereo.

You can connect a mixer, a wireless receiver, or directly from a DJ controller. The volume knob is right on the back – no menu diving.



8. “How do I stack multiple HDL210 units? Do I need special rigging?”

Yes – line array rigging requires flying frames and pins. We sell optional rigging hardware separately. For most small to medium events, two HDL210 per side flown from a ground‑supported truss or a crank tower works beautifully.

The vertical coverage of 15° means when you array 2‑3 units, you get a smooth wavefront that throws further with less drop‑off.



9. “Is this speaker available on Amazon? Can I buy as a reseller?”

We supply many two way line array speaker Amazon sellers. But you get better pricing and direct support when you buy from us – a China line array speaker manufacturer. We also work with wholesale and distributors worldwide.

If you’re looking for a 10 inches line array speaker factory China that actually answers emails, that’s us.



10. “What about warranty and after‑sales support?”

All Lesound products come with a 2‑year warranty against manufacturing defects. We keep spare parts (amplifier modules, drivers, DSP boards) in stock. If something fails, we troubleshoot via video call and ship replacement parts quickly.

We’ve been a powered line array speaker manufacturer for over 8 years, supplying to rental companies, installers, and live sound brands.



---

Why Lesound – Your Custom Line Array Partner

Let’s be direct. You can buy a cheap line array from Alibaba and hope it works. Or you can work with a factory that:

• Tests every unit before shipping (full 24‑hour burn‑in)
• Listens to your custom needs – from custom color line array speaker factory to ODM line array speaker supplier for your own brand
• Provides real technical drawings and DSP settings
• Ships samples within 20 days

We are a China line array speaker OEM supplier that treats every inquiry – even small ones – with the same care. Want a custom two way line array speaker with your logo on the grille? Done. Need a OEM 10 inch line array speaker with a different woofer? Let’s talk.

---

Common Tech Questions from Real Customers (Answered)

Q: What’s the crossover frequency?
A: 2.0 kHz, internal active crossover (DSP controlled).

Q: Can I run it on a generator?
A: Yes. Power supply is 110‑220V universal. It draws about 3‑4 amps at 120V. A small 2000W generator runs two HDL210 easily.

Q: Does it have a limiter?
A: Yes. RMS and thermal protection. You won’t blow it by pushing too hard – the limiter kicks in.

Q: What’s the maximum number I can array without external processing?
A: Up to 4 per side using the built‑in DSP. For more, we recommend external system processor.

Q: Can I mount it on a standard speaker stand?
A: Yes – it has a 35mm pole mount socket on the bottom (standard for PA speakers).



---

Ready to Discuss Your Project?

We don’t do pushy sales. We do solutions.

Tell us:

• How many units you need
• Whether you need custom logo / color
• If you want OEM branding (your name on the product)
• Your target market (Amazon, rental, install, etc.)



We’ll reply within 24 hours with:

• Quotation
• Tech drawing (if custom)
• Sample lead time
• Shipping cost to your city

Leave a message below or email sales@lesound.com.cn
Let’s build your line array solution – together.
