I get emails every week that sound like this:
“Can you make a 4 inches line array OEM with my logo on the grille?”
“How do I know your PA loudspeaker China factory won’t send me junk?”
“What’s the real difference between a 3 way line array speaker and those cheap column things on Amazon?”
My name’s Steven from Lesound. I’ve been building speakers in China for over a decade. And I’ll be honest: there are a lot of speaker manufacturer China outfits that will promise you the moon, then ship you rattling boxes with fake specs.

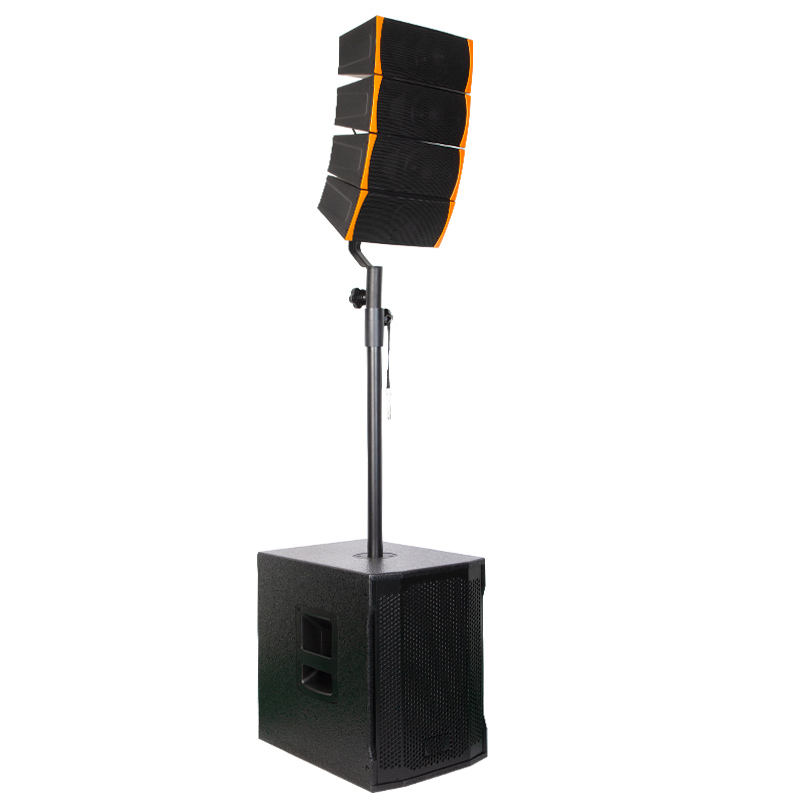

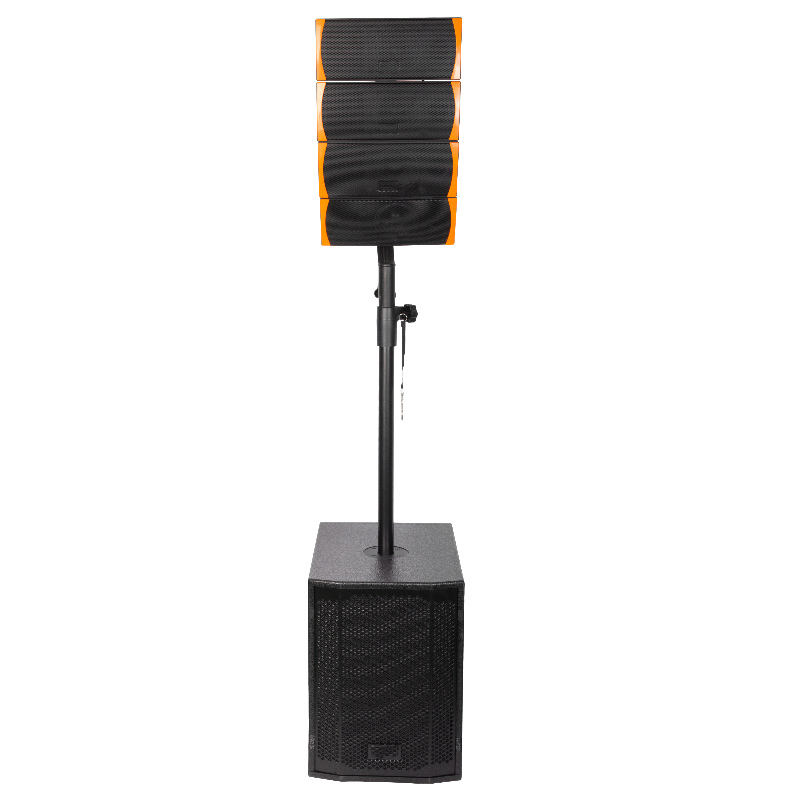

So here’s my no-BS guide to picking a sound system China supplier that actually delivers. I’ll use our VS3000 portable line array as a real example – not a marketing brochure. At the end, I’ll show you exactly how to start a custom 3 way line array project without getting burned.
First, Why a 3-Way Line Array?
A true 3 way PA loudspeaker manufacturer design splits the work:
- A 12” sub for kick drum and bass (65–120Hz)
- Four 4” drivers for vocals and mids (120Hz–2.5kHz)
- A 25mm tweeter for cymbals and air (above 2.5kHz)
Why three ways? Because two-way line arrays force the 4” driver to handle too much high frequency, and you get distortion. I’ve tested cheap “line arrays” from other amazon speaker supplier brands – they measure fine at low volume, but push them to 110dB and the mids turn to mud.
Our VS3000 gives you 117dB max SPL at 1m. That’s tested with music, not a sine wave. You can cover 200 people outdoors for a wedding or a corporate speech.
Quick Spec Table: What Matters to Real Buyers
Below is a table I actually use when talking to customers. No fluff. Just what you care about.
| Feature | VS3000 Spec | Why It’s Important (Real Talk) |
|---|---|---|
| System type | 3-way active line array + 12" sub | One trip from car to stage. No rack, no external amp. |
| Amp power | 720W Class-D (2x180W RMS, 360W+360W peak) | Loud enough for 150–300 people. Don’t let anyone sell you less. |
| Frequency range | 65Hz – 20kHz | You don’t need a separate sub for most music. |
| Max SPL @1m | 117dB | That’s “talk over the crowd” level. |
| Coverage (H x V) | 60° x 90° | Wide horizontal for audience, narrow vertical to avoid ceiling bounce. |
| Crossover points | 120Hz, 2.5kHz | No gap between sub, mids, and tweeter. |
| Line array drivers | 4” fullrange x4 + 25mm HF | Real line array behavior – not a column speaker. |
| Sub driver | 12", 2.5" v.c., 50oz ferrite | Punchy bass even without a second sub. |

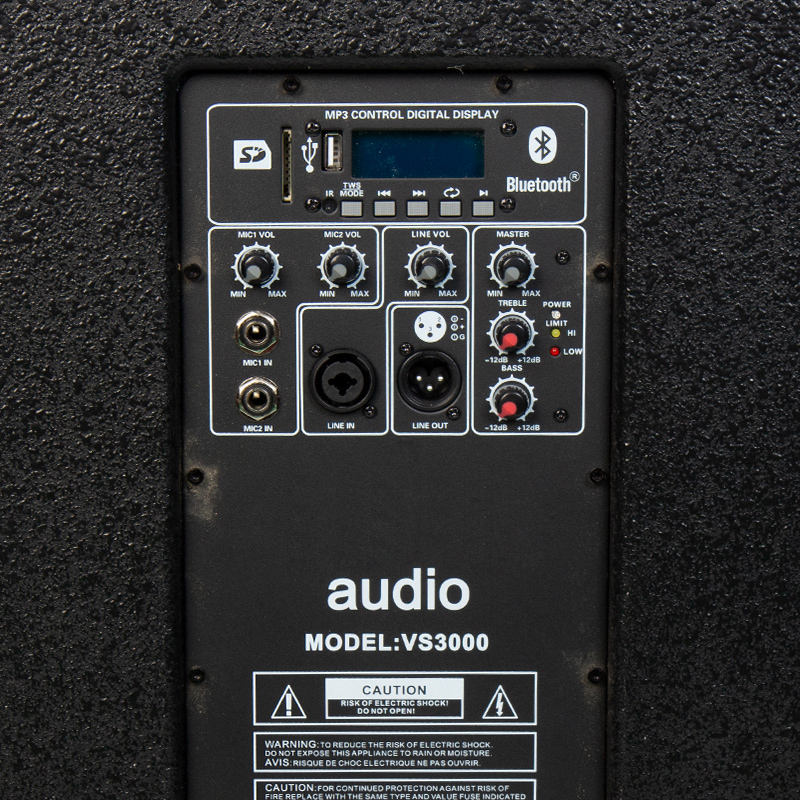

| Inputs | Combo x1, 6.35mm x2, USB-A x2 | Plug a mic, a guitar, or a USB stick directly. |
| Outputs | 6.35mm link, male XLR | Daisy‑chain multiple subs for bigger events. |
| Bluetooth | TWS 5.0 + LCD MP3 player | True wireless stereo between two systems. Works at 20m. |
| Cabinet material | Birch plywood (sub), PP plastic (arrays), steel grille | Light enough to carry, tough enough for 100+ shows. |
| OEM options | Color, logo, packaging, passive crossover tuning | Your brand, your sound. No forced generic look. |
5 Questions Customers Always Ask (And My Real Answers)
1. “What’s your MOQ for custom 3 way line array?”
For 4 inches line array OEM with your logo on the cabinet and grille – MOQ is 50 sets (one sub + four line array modules per set).
For a full custom 3 way line array (different drivers, tuning, or shape) – MOQ 200 sets.
But we also keep standard VS3000 in stock. You can buy 10 sets as an amazon speaker supplier test run. No MOQ stress.
2. “How do I know the amp won’t fail after three months?”
We burn in every batch for 48 hours at 80% power. Then we test thermal and RMS protection. Japanese capacitors inside. Not cheap Chinese parts.
We give you 2-year warranty. And you can ask for a pre-production sample to beat up yourself.
3. “Can you make a passive version? I have my own DSP.”
Yes. As a line array speaker ODM provider, we offer passive cabinets with NL4 connectors. You can bi-amp them. Just tell me your target impedance and power handling.
4. “Is TWS Bluetooth really stable for outdoor weddings?”
Bluetooth 5.0 with a dedicated antenna. TWS links two subs wirelessly up to ~20 meters line-of-sight. For mission-critical events, I still recommend wired XLR. But for backyard parties, graduation ceremonies, or small concerts – zero dropout complaints from our amazon speaker supplier clients.
5. “What certifications do you have?”
CE, ROHS, FCC. For bulk custom 3 way line array orders, we can provide test reports and help with UKCA, SAA, etc. We’re ISO9001:2015 certified as a speaker factory China custom partner.
Why Lesound is Different from Other Sound System China Suppliers
I’m not going to say “we’re the best.” But I’ll tell you three things we actually do that others only talk about.
1. We make our own plastic cabinets and grilles in‑house.
That means when you want a custom 3 way line array in white (for weddings) or with a specific pantone color, we don’t wait 60 days for a third-party mold. We can do it in 20 days.
2. Every single system gets a real listening test.
Not just a quick power-on. We run pink noise, sine sweeps, and 30 minutes of music at max volume. We also check Bluetooth pairing and the LCD screen. We can send you a video of your batch being tested.
3. Hybrid ODM + ready-stock model for Amazon sellers.
Are you an amazon speaker supplier? We keep 100 units of the standard VS3000 in our Shenzhen warehouse. You can order as few as 10 sets with your own sticker logo (no tooling cost). For larger line array speaker ODM projects, we design custom boxes and write user manuals in your language.
A Technical Note: Why 4” Drivers Beat 2.5” Columns
I see a lot of “line arrays” on the market using 2.5” or 3” full-range drivers. They’re cheap to make. But here’s the problem: at high SPL, small drivers can’t move enough air for clean mids. You get “cupping” on male vocals.
The VS3000 uses four 4” drivers (each with a 1” voice coil) plus a separate 25mm titanium tweeter. That’s a real 3 way PA loudspeaker manufacturer design. Try this test: play a vocal-heavy track at 110dB on a 2.5” column, then on our system. You’ll hear the difference immediately – clearer, less fatigue, more punch.
That’s engineering, not marketing.
How to Start Your OEM/ODM Project (Step by Step)
No mystery. Here’s the exact process we use with clients from the US, Europe, Australia, and Middle East.
- Send an inquiry – Tell me your target quantity, custom needs (logo, color, passive/active, special tuning).
- Quote & samples – I’ll send pricing for 4 inches line array OEM or custom 3 way line array. Sample takes 7–15 days by air.
- Deposit & tooling – If you need new plastic molds or metal grille logos, tooling is 15–20 days.
- Pre‑production batch – 10–20 sets for your approval. You test them.
- Mass production – 30–45 days for MOQ.
- QC & shipping – We send you inspection videos, then sea or air freight.
We also do drop‑shipping for Amazon FBA. Many amazon speaker supplier partners use our “China to USA in 7 days” air freight option.
Let’s Talk About Your Project
I don’t do generic quotes. Every speaker factory China custom project is different. So tell me:
- What’s your application? (Wedding, band, conference, outdoor movie, etc.)
- How many systems per year?
- Active or passive?
- Any special color or branding?
Just leave a message below or email sales@lesound.com.cn. I’ll reply within 24 hours with a real solution – not a copy‑paste.
No pressure. Just honest audio engineering from a PA loudspeaker China factory that’s been doing this for over a decade.
Lesound – Your partner for 3 way line array speaker systems, from sample to shipping.
